Securing Your Network: Understanding and Enforcing Security Across the 7 OSI Layers
Fortify Your Network: Security Through Every Layer
The OSI model splits networking into seven layers, from the cable in the wall to the app on your screen. Knowing them helps you troubleshoot faster - and shows you exactly where to put your defenses.
The OSI model is not just networking trivia - it is a map of where a connection can break and where an attacker can strike.
When something on your network goes wrong, "the internet is down" is rarely specific enough to fix it fast. The OSI model gives you a shared language: is the problem at the cable, the switch, the router, or the app? The same map doubles as a security checklist - each of the seven layers has its own weak points and its own defenses. Here are the layers, how they relate to the TCP/IP model, and the security control that belongs at each level.

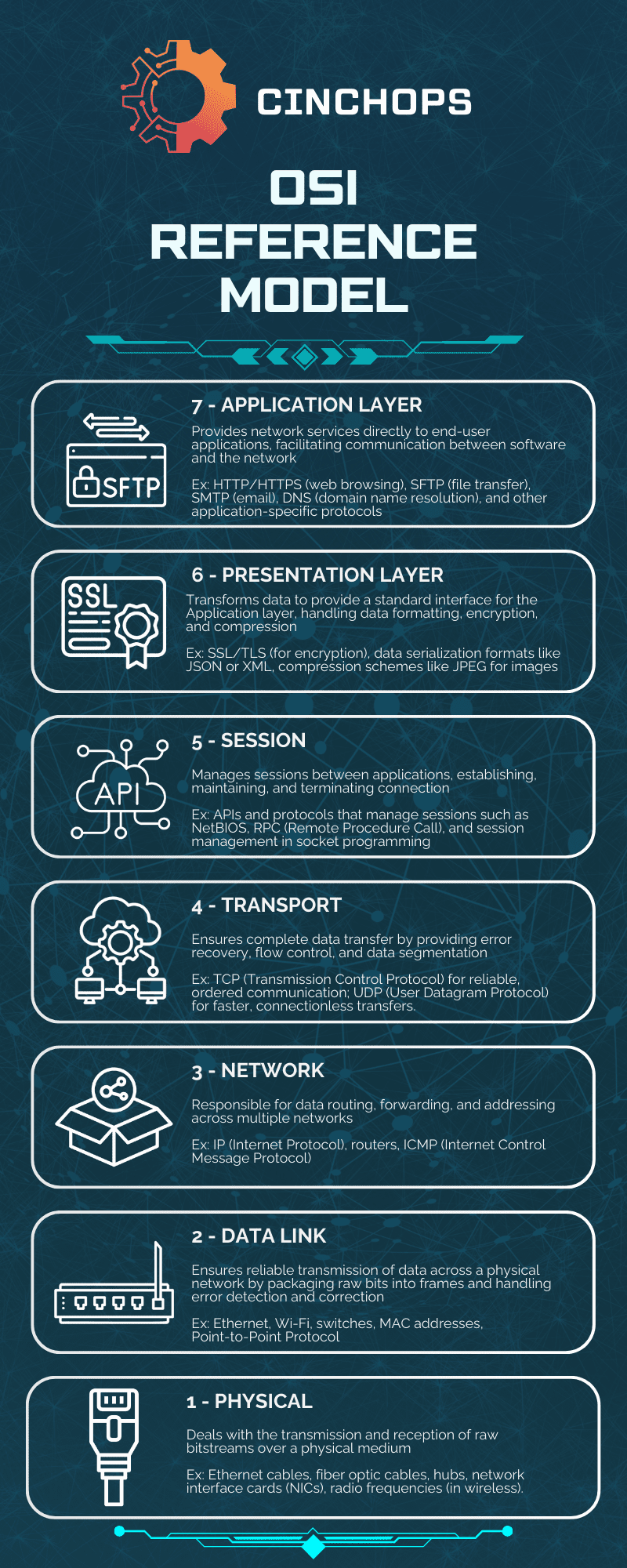

The 7 Layers, Bottom to Top
Data travels down the stack to send and back up to receive.
Each layer hands off to the one above or below it, and each has a clear, single job.
- Physical. The cables, fiber, and Wi-Fi radio that carry raw bits as electrical or light signals.
- Data Link. Moves frames between devices on the same local network using MAC addresses - the job of switches.
- Network. Routes packets across different networks using IP addresses - the job of routers.
- Transport. Delivers data end-to-end with TCP and UDP, using port numbers and handling reliability.
- Session. Opens, maintains, and closes the ongoing conversations between two applications.
- Presentation. Formats, encodes, and encrypts data so the application can read it - think TLS and file formats.
- Application. The layer people actually touch: web, email, and file-transfer protocols like HTTP, SMTP, and DNS.
OSI vs. TCP/IP
The internet runs on a simpler four-layer model - here is how they line up.
The OSI model is the teaching framework; TCP/IP is the practical one that actually powers the internet.
| TCP/IP layer | OSI layers it covers |
|---|---|
| Application | Layer 7 Application + Layer 6 Presentation + Layer 5 Session |
| Transport | Layer 4 Transport |
| Internet | Layer 3 Network |
| Network Access (Link) | Layer 2 Data Link + Layer 1 Physical |
In practice, engineers use both: OSI when they need to pinpoint exactly where something fails, and TCP/IP when they are describing how real traffic flows.
A Security Control for Every Layer
Defense in depth means a safeguard at each level, not one wall.
Because a threat can target any layer, real security applies a control at each one instead of trusting a single tool.
- Layer 1, Physical. Locked server rooms, badge access, cameras, and disabling unused network jacks.
- Layer 2, Data Link. Switch port security, MAC filtering, and VLANs to limit an attacker's lateral movement.
- Layer 3, Network. Firewalls, network segmentation, and IP allow/deny rules to control where traffic can go.
- Layer 4, Transport. Encrypt traffic with TLS, close unused ports, and rate-limit to blunt floods.
- Layers 5 and 6, Session and Presentation. Session timeouts, strong authentication, and encryption of data in transit and at rest.
- Layer 7, Application. Patching, a web application firewall, multi-factor authentication, and staff training against phishing.
Attackers do not care which layer they get in through - so your defenses cannot only live at one. The OSI model is the simplest way to make sure you have not left a floor of the building unlocked.
Layered Security, Built for Your Network
CinchOps secures Houston-area networks at every layer - physical access, segmentation, firewalls, encryption, and application defenses - through our cybersecurity and managed IT services.
Explore CinchOps cybersecurity →How CinchOps Helps Secure Your Business
CinchOps is a Katy, Texas managed IT services provider serving businesses across the Houston metro, building defense in depth across every network layer.
- Network design and segmentation. VLANs and firewalls that limit how far a problem can spread.
- Access control. Physical and logical controls so only the right people and devices connect.
- Encryption everywhere. TLS in transit and encryption at rest to protect your data.
- Application defenses. Patching, web application firewalls, and MFA where users and attackers meet.
- Monitoring and response. 24/7 visibility so a problem at any layer gets caught early.
Want defense in depth without the complexity? Contact CinchOps to secure your network layer by layer.
Frequently Asked Questions
What are the 7 layers of the OSI model?
From bottom to top: Physical (1), Data Link (2), Network (3), Transport (4), Session (5), Presentation (6), and Application (7). Data moves down the stack when you send and up the stack when you receive.
What is the difference between the OSI and TCP/IP models?
OSI has seven layers and is mainly a teaching framework; TCP/IP has four layers and is what the internet actually runs on. TCP/IP's Application layer combines OSI Layers 5 through 7, and its Network Access layer combines OSI Layers 1 and 2.
Why is the OSI model useful for troubleshooting?
It gives you a precise place to look. Instead of "the network is down," you can isolate whether the issue is a cable (Layer 1), a switch (Layer 2), routing (Layer 3), a port or protocol (Layer 4), or the app itself (Layer 7).
How does the OSI model relate to security?
Every layer has its own risks and defenses. Physical security protects Layer 1, segmentation and firewalls protect Layers 2 and 3, encryption protects the transport and presentation layers, and application defenses like MFA and a web application firewall protect Layer 7.
What is an easy way to remember the layers?
"Please Do Not Throw Sausage Pizza Away" runs bottom to top (Physical to Application). "All People Seem To Need Data Processing" runs top to bottom (Application to Physical).
